Ultimate A/V plus Serial/IR Control Single CAT5e/6 300M Extender Kit

  • All-in-One CAT5e/6 extender solution
  • Supports 1080p and up to 1920x1200
  • Adjustable cable EQ and gain control plus bi-directional IR
  • Transmitter has A/V loop-out port
  • Flexible RS232/serial control provides master and slave mode
  • Built-in mounting flange with
    locking power connectors
  • Supports both analog stereo &
    digital SPDIF audio

Price: $448.50
MSRP: Retail: $598.00
You Save: $149.50 (25.0%)
    • Weight: 3.00lbs

    In Stock

    Quantity:

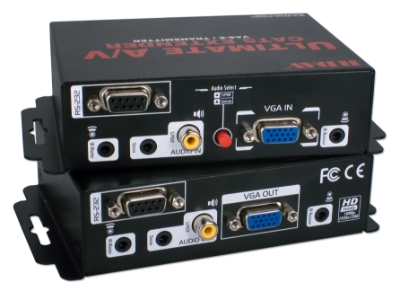

    Extends up to 330-Meter (1,000ft). This ultimate A/V extender kit sends audio, video, serial & IR control using a single CAT5e cable! It supports both stereo & digital audio, RS-232 half-duplex, bi-directional IR (36KHz~40KHz) pass-thru and provides adjustable equalization and gain control. Includes transmitter & receiver module, IR control cables and power adaptors. (Local Connectors: 1 RJ45/RS-232, 2 HD15/RCA/3.5mm audio/3.5mm IR Female; Remote Connectors: 1 HD15/RJ45/RS-232/3.5mm audio, 2 3.5mm IR Female)
    VAS-E0 37229 00715 2
    Signal TypeVGA/SVGA, XGA/WUXGA
    Video Bandwidth150MHz
    ConnectorsHD15/DB9/RCA/3.5MM/RJ45
    DDC CompatibilityYes
    EQ & Gain AdjustmentRotary
    ImpedanceRGB - 75Ohms Unbalanced
    CAT5e 100Ohms Balanced
    RS-232 SerialHalf-Duplex with Dual-Mode
    Infra Red Frequency38KHz
    Power Supply / Operating Temp.5v 2A DC / 32 to 131 degrees F
    ComplianceFCC, CE, Rohs
    WarrantyOne Year
