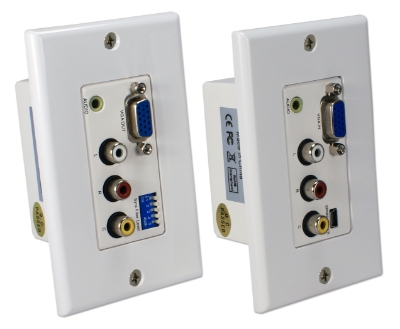

Intuitive design anticipates both computer and regular A/V application. This wallplate extender kit has shielded casing to meet government, school, and commercial requirements. Using 2xCAT5e RJ45 cables, it provides both PC VGA & stereo audio along with composite audio and video. Both transmitter and receiver have grounding screws. Transmitter has Mini-USB port for optional power. When power port is not available, this is a perfect extender A/V solution. Supports 1280x1024 @60Hz up to 30-Meter. Includes transmitter, receiver, cables & mounting screws. (REV 2; Local Connectors: 1 HD15/3.5mm, 2 RJ45, 3 RCA female; Remote Connectors: 1 HD15/3.5mm, 2 RJ45, 3 RCA female)
| VARCA-1P | 0 37229 00714 5 |
| Signal Type | PC VGA/SXGA & Composite |
| Audio | Stereo |
| Video Bandwidth | Up to 100MHz |
| Connectors | HD15/ 3.5mm RCA/ RJ45 |
| Insertion Loss | Less than 3db |
| Impedance | RGB - 75Ohms Unbalanced
CAT5e - 100Ohms Balanced |
| Video Signal Return Loss | -15db Max from DC to 60MHz |
| PC & LCD Compatibility | Yes |
| Operating Temperature | 32 to 131 degrees F |
| Certification | RoHS Compliant |
| Warranty | One Year |
