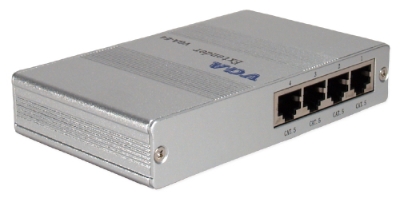

4Port VGA/QXGA CAT5/RJ45 Extender System Transmitter Module with Local Port

  • Extends video signal to 300-Meter
  • Resolution up to 2048x1536
  • Provides EQ and gain control
  • Pass-thru VGA loop-out port to connect local monitor
  • Includes transmitter & power adapter
  • Must use with VGA-C5ERs Receiver

Price: $198.45
MSRP: Retail: $229.95
You Save: $31.50 (13.7%)
    • Weight: 1.87lbs

    In Stock

    Quantity:
    Extends video signal up to 300-Meter (984ft) using the VGA Extender System and CAT5/RJ45 cable. This transmitter or local module provides 4 VGA distribution amplifier port over CAT5 plus local port that allows connection of another monitor near the computer. Supports maximum resolution of 2048x1536/60Hz for up to 50-Meter, 1280x1024/60Hz for up to 100-Meter, 1024x768/60Hz for up to 180-Meter, 800x600/60Hz for up to 200-Meter, & 640x480/60Hz for up to 300-Meter. This must be used in conjunction with VGA-C5ER or VGA-C5ERP VGA Extender System Receiver/Remote Module. Includes transmitter and power adaptor. Required Cables: Solid CAT5e/6 Cables. (Connectors: HD15/RJ45 Female)
