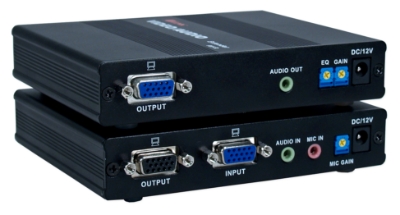

300-Meter VGA/QXGA with Stereo Audio CAT5e/RJ45 Extender Kit

  • Extends VGA A/V signal to 300-Meters
  • Resolution up to 2048x1536
  • Provides 3.5mm stereo audio
  • Transmitter has pass-thru VGA loop-out port to connect local monitor
  • Includes transmitter/receiver, power adapters & 3ft 3.5mm/HD15 cable

Price: $249.50
MSRP: Retail: $499.00
You Save: $249.50 (50.0%)
    • Weight: 3.65lbs

    In Stock

    Quantity:
    Extends audio and video signals up to 300-Meter (984ft) using CAT5e/RJ45 cable. This extender kit provides 3.5mm stereo audio and video equalization & signal gain adjustment. Supports 96KHz audio sampling rate and maximum video resolution of 2048x1536/60Hz for up to 50-Meter, 1280x1024/60Hz for up to 100-Meter, 1024x768/60Hz for up to 180-Meter, 800x600/60Hz for up to 200-Meter, & 640x480/60Hz for up to 300-Meter. Includes transmitter & receiver, power adaptors and one 3ft 3.5mm/HD15 M/M cable. Required Cables: Solid CAT5e/6 Cables. (Local Connectors: 3.5mm/HD15/RJ45 Female to Remote Connectors: 3.5mm/HD15/RJ45 Female)
    VAC5-E0 37229 00720 6
    VAC5-EP0 37229 00721 3
    Video Signal TypeVGA/SVGA, XGA/QXGA
    Video Bandwidth / ConnectorsUp to 150MHz / HD15 & RJ45
    Insertion LossLess than 3db
    ImpedanceRGB - 75Ohms Unbalanced
    CAT5e - 100Ohms Balanced
    Video Signal Return Loss-15db Max from DC to 60MHz
    CAT5e Cable EqualizerAdjustable EQ Controls
    Audio Frequency10Hz to 25KHz / -3db
    Audio Impedance & Connectors10k Ohms / 3.5mm
    Operating Temperature32 to 120 degrees F
    CertificationRoHS Compliant
    WarrantyOne Year
