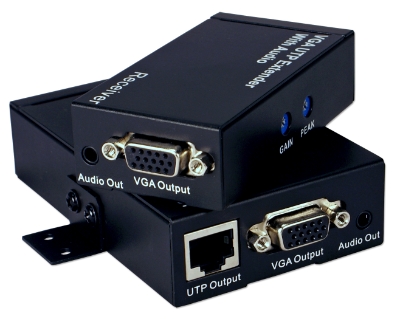

150-Meter VGA/WUXGA with Audio Single CAT5e/6 Extender Kit

  • Extends VGA A/V signal to 150-Meters
  • Resolution up to 1920x1200
  • Adjustable cable EQ and gain control
  • Transmitter has built-in mounting flange plus VGA/Audio loop-out port
  • Includes AC power adapters

Price: $118.30
MSRP: Retail: $169.00
You Save: $50.70 (30.0%)
    • Weight: 1.45lbs

    In Stock

    Quantity:
    An economical way to connect any VGA/WUXGA video display to any computer, switch or distribution amplifier. It has gain and skew to compensate with UTP cable variations. Mounting flange on the transmitter module & pass-thru audio & video port provide greater installation flexibility. Supports resolution varies from 640x480 up to 1920x1200 depending on the distance and quality of CAT5e/6 UTP cable. Using a Belden CAT5e solid cable, it can support up to 1920x1200/60Hz up to 100ft, 1280x1024/75Hz up to 300ft, 1024x768/75Hz up to 500ft. Includes transmitter & receiver, power adaptors. Required Cables: Solid CAT5e/6 Cables. (Local Connectors: 3.5mm/HD15/RJ45 Female to Remote Connectors: 3.5mm/HD15/RJ45 Female)
    VA-E0 37229 00738 1
    Video Signal TypeVGA/SVGA, XGA/UXGA
    Video Bandwidth / ConnectorsUp to 150MHz / HD15 & RJ45
    Insertion LossLess than 3db
    ImpendanceRGB - 75Ohms Unbalanced
    CAT5e - 100Ohms Balanced
    Video Signal Return Loss-15db Max from DC to 60MHz
    CAT5e Cable EqualizerAdjustable EQ Controls
    Audio Frequency10Hz to 25KHz / -3db
    Audio Impedance & Connectors10k Ohms / 3.5mm
    Operating Temperature32 to 120 F
    CertificationFCC, UL, CE, RoHS Compliant
    WarrantyOne Year
