300-Meter VGA/UXGA with Audio Multi-Port Single CAT5e/6 Extender Kit

  • Connects dozens displays from single source
  • Extends VGA A/V signal to 300-Meters
  • Resolution up to 1600x1200/60Hz
  • Daisy-chain up to 3 levels
  • Built-in mounting flange
  • Adjustable cable EQ & gain control
  • Transmitter provides 4-receiver RJ45 ports plus VGA/audio loop-out port
  • Receiver provides 2-port vga/audio out plus daisy chain RJ45 port
  • Includes power adapters

    Available Receivers:
  • Wall plate receiver (VA-EXR-WP)
  • Two port receiver (VA-EXR)

Price: $302.05
MSRP: Retail: $349.95
You Save: $47.90 (13.7%)
    • Weight: 2.12lbs

    In Stock

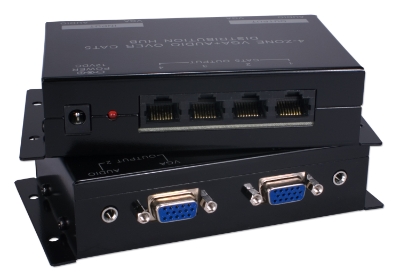

    This extender kit sends VGA video and audio using a single CAT5e cable. The transmitter module features built-in 4-Port RJ45 D/A with loop-out for local screen and speaker system. Receiver module has dual-output VGA/Audio that allows you to connect two-sets of screens & speakers, gain and EQ control for optimal picture, and an extra RJ45 port to daisy-chain up to 3 levels. It supports resolution up to 1600x1200/60Hz at 100-Meter, 1280x1024/60Hz at 120-Meter, 1024x768/60Hz at 180-Meter, 800x600/60Hz at 200-Meter, and 640x480/60Hz at 300-Meter. To connect more screens and speakers, please order additional receiver module (VA-EXR) or wall plate receiver module (VA-EXR-WP). Includes wall-mounted transmitter & receiver, and universal power adaptors. (Connectors: HD15/3.5mm/RJ45)
    VA-EXK0 37229 00746 6
    Video SignalVGA/SVGA, XGA/UXGA
    Video Bandwidth / ConnectorsUp to 150MHz / HD15 & RJ45
    Insertion LossLess than 3db
    ImpedanceRGB - 75OHms Unbalanced
    CAT5e - 100Ohms Balanced
    Video Signal Return Loss-15db Max from DC to 60MHz
    CAT5e Cable EqualizerAdjustable EQ Controls
    Audio Frequency10Hz to 25KHz / -3db
    Audio Impedance & Connectors10k Ohms / 3.5mm
    Operating Temperature32 to 120 degrees F
    Power Supply12v DC 1.2A
    CertificationFCC, UL, CE, RoHS Compliant
    WarrantyOne Year
