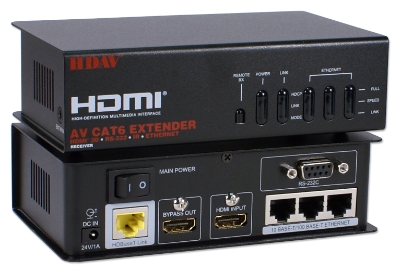

HDMI 3D HDBaseT 5-Play with IR/Serial/Ethernet Single CAT6 100-Meter Active Extender

  • All-in-One Single-CAT6 extender solution at 1080p with 3D
  • Supports Deep Color, ARC, 4Kx2K, full-duplex RS232 & full-bandwidth IR
  • Wall mountable with built-in 6-Ethernet Ports (3-ports per module)
  • Installers ByPass HDMI Port for troubleshooting
  • Receiver is powered thru built-in POE
  • Includes transmitter, receiver, IR control cable & universal AC power adapter with interchangeable plugs

Price: $454.35
MSRP: Retail: $699.00
You Save: $244.65 (35.0%)
    • Weight: 3.06lbs

    In Stock

    Quantity:
    Extends HDMI signal up to 100-Meter (328ft) using a single CAT6/RJ45 cable. It has built-in 6-Gigabit ethernet ports that allow connection of home theater PC, HDTV & other HD devices to the internet, built-in IR with 20KHz-80KHz frequencies & Serial Control allows remote management of source & display. It supports 1080p/3D, resolutions up to 4Kx2K, Deep Color, DTS-HD & Dolby TrueHD digital audio, and Power over Ethernet (PoE) that provides power on receiver module. It works with latest cable TV & satellite receivers. Perfect for Home Theater & Digital Signage applications. FullHD HDMI v1.4 and HDCP compliant. Includes transmitter & receiver, IR control cable, and universal power adaptor. (Local Connectors: HDMI/RJ45/DB9/3.5mm IR and Remote Connectors: HDMI/RJ45/DB9/3.5mm IR)

    Signal Type: 720p, 1080i, 1080p, 4k x 2k
    Video & IR Bandwidth: 340Mhz (10.2Gbps) / 20-80KHz
    Connectors: HDMI 29Pin / RJ45 / IR / DB9
    HDCP/DDC/CEC Compatibility: Yes
    Deep Color Support: Up to 48bit
    RS-232 Serial: Bi-directional, up to 57600bps
    Power Supply: 24v 1A DC, Transmitter Only
    Operating Temperature: 32 degrees F to 158 degrees F
