| MHDCP-RPTR |

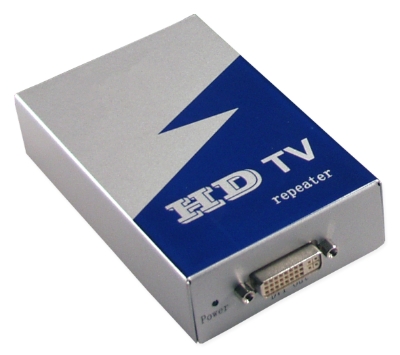

HDCP Certified 100ft Digital Video/HDTV Repeater/Extender
Extend you HDTV/HDCP signal up to 100ft. This repeater actively regenerates the signal to ensures clear and sharp images as fas as 100ft at 1280x1024 or 80ft at 1600x1200. Supports with flat panel, plasma screen, projector, switch, splitter, computer video display, HDTV/HDCP, set-top boxes, DTV and DVD with DVI. Recommended Cables: CFDP-Sxx Male to Male DVI Cables. (Connectors: 2 DVI-I Female,Single Link)
|
|
| Features |
| |
Use PanelLink digital technology. |
| |
Supports high-resolution display up to UXGA (25-165 MHz), 480p, 480i, 720p, 1080i. |
| |
Support HDCP. |
| |
Compliant with the specification of DVI 1.0. |
|
Can be cascaded. |
|
Function |
Specification |
| Cable Distance(Single End) |
12m max |
| Signal Type |
Standard DVI Signal |
| Video Input Connector |
1 DVI Female |
| Video Output Connector |
1 DVI Female |
| DVI Resolution |
1600x1200 @ 60Hz |
| DC Power Adaptor |
Voltage |
9V |
| Amps |
600mA |
| Housing |
Metal |
| Weight |
300g / .6lbs |
| Dimensions |
Length |
118mm / 4.72inch |
| Width |
75mm / 3inch |
| Height |
29mm / 1.16inch |
|
| |
 |
