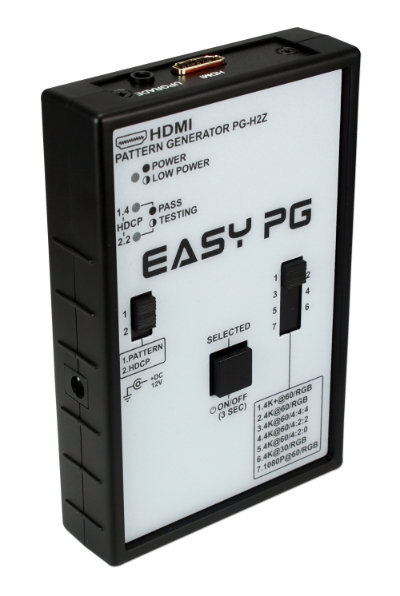

HDMI 4K Video Pattern Generator

  • High-resolution video test pattern generator
  • 594MHz, 7 different resolutions up to 4K @ 60Hz
  • 16 different video test patterns
  • Easy-to-use push-button control
  • Built-in audio and HDCP signal tester
  • Powered either by using a 9v battery or using a power adapter
  • Includes 9v battery and universal power supply with global plugs
  • HDCP 1.4 & 2.2 Compliant

Price: $302.05
MSRP: Retail: $349.95
You Save: $47.90 (13.7%)
    • Weight: 1.76lbs

    In Stock

    An economical way to test and evaluate HDMI HDTV/HDCP displays/panels and easily troubleshoots any calibration issues. It has 7 different test resolutions at 8-bits 18Gbps from 1080p@60Hz/RGB; 4K@30Hz/RGB; 4K@60Hz/4:2:0/YCbCr; 4K@60Hz/4:2:2/YCbCr; 4K@60Hz/4:4:4/YCbCr; 4K@60Hz/RGB; 4K+@60Hz/RGB, 16 different video test patterns that quickly determine color performance & linearity, easy-to-use push-button control, and built-in audio & HDCP signal tester. It can be powered either by using a 9v battery or using a power adaptor. Ideal for installer/integrator to save time and solve problems with HDTV displays. Includes 12vDC 120-240vAC universal power adaptor with interchangeable plugs and 9v battery. HDCP 1.4 & 2.2 Compliant. (REV2; Connectors: HDMI Female)
