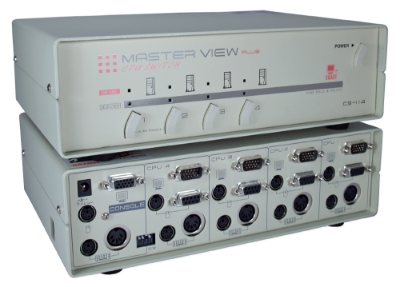

CS114 SERVERMASTER

Supports Regular PC & PS/2, with Dual Ports

Access Up to Four (4) Servers (Up to 64 Computers, Cascaded)



Introduction:

ServerMaster is a controller for one user to access multiple computers. Before, the costly network was the only solution to this application. Now, the ServerMaster provides the easiest and the most cost effective way of accessing multiple computers. With the powerful features of the ServerMaster, anyone is capable of operating or testing many computers by a monitor, keyboard and mouse. Switching from one computer to the other is easily done by HotKeys or button pressing. No more programs to install, and no incompatibility problems, because the ServerMaster intercepts the HotKeys from the keyboard directly. One ServerMaster controls up to four (4) computers. Once cascaded, ServerMaster may control up to 64 computers. A powerful auto-scan feature scans all operational computers one by one, and stops upon user request. ServerMaster is ideal for Server, Computer Room, Factory, Testing, etc...

Features:

• Supports PC/PS2 and AT keyboard mouse
• PS/2 mouse and MS mouse emulation and keyboard emulation for automatic PC boot up
• Supports SVGA, VGA, & Multisync Monitors
• Simple keystrokes or Push Buttons for PC selection
• Buzzer Sound for Switching Confirmation
• Three (3)stages cascadable for accessing more computers
• Auto Scan and Manual Selection
• Keyboard Caps Lock, Num Lock, Scroll Lock states automatically saved and restored when switching among computers
• Scan mode automatically switches through power-on computers, scan rate is DIP switch selectable
• Saves spaces, equipment, and power costs
• Easy HotKeys control is compatible with normal keyboard operation
• Keyboard LED status recorded and restored while switching among computers
• Provides IBM AT keyboard ports

Specifications:

Power consumption	9vDC 250mA Power Adapter
Accessing PC Number	4
PC Selected By	Keyboard/Button
Keyboard Emulation	PS/2 & PC/AT
Mouse Emulation	PS/2 & PC/AT
LEDs Indicators	LEDs Indicators (1)-Power Status (4)-Port Status
VGA Band Width	(-3db) 180mHz
VGA Resolution	1600 x 1200
PC Selected By	3/10/20/40 sec
Keyboard Connectors	Din5F for PC & Mini6F for PS/2
Mouse Connectors	DB9F for Serial & Mini6F for PS/2 to servers Mini6F for PS/2 to console
Monitor Connector	HD15M (O) / HD15F(I)
Enclosure	Metal
Weight	2,650 gm
Dimensions (LxWxH)	254 x 180 x 82 mm



Includes:

• (1) ServerMaster
• 9vDC 600mA Power Adapter
• User's Manual & Warranty Card
