CC2275A Sun Microsystems Monitor
Cable/Adaptor |

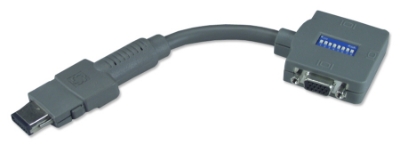

DB15M/HD15F, 10 DIP Mac & PowerBook Monitor Adaptor
|
DIP Switch Settings
for CC2275A
|
| Monitor |
Resolution |
Mode 1 |
Mode 2 |
Mode 3 |
Mode 4 |
Mode 5 |
Mode 6 |
| 12" RGB |
512x384 |
1345 |
13456 |
1347 |
1345 |
13467 |
134 |
| 13" RGB |
640x480 66Hz |
145 |
1456 |
147 |
146 |
1467 |
14 |
| Portrait |
6480x870 |
2345 |
23456 |
2347 |
2346 |
23467 |
234 |
| VGA/SVGA |
640x480/800x600 60Hz |
235 |
2356 |
237 |
236 |
2367 |
23 |
| 15" TILT |
245 |
2456 |
247 |
245 |
2467 |
24 |
| 16" Color |
832x624 |
135 |
1356 |
137 |
136 |
1367 |
13 |
| 19" Color |
1024x768 |
125 |
1256 |
127 |
126 |
1267 |
12 |
| 21" Color |
1152x870 |
12345 |
123456 |
12347 |
12345 |
123467 |
1234 |
| 2 Page Mono |
1152x870 |
345 |
3456 |
347 |
346 |
3467 |
34 |
| NTSC |
1245 |
12456 |
1247 |
1246 |
12467 |
124 |
| NTSC/PAL |
1235 |
12356 |
1237 |
1236 |
12367 |
123 |
| On the fly
res. switch 13" |
145 |
1456 |
147 |
146 |
1467 |
14 |
| On the fly
res. switch 14" |
14589 |
145689 |
14789 |
14689 |
14678 |
1489 |
| On the fly
res. switch 17" |
1458 |
14568 |
1478 |
1468 |
14678 |
148 |
| On the fly
res. switch 21" |
1459 |
14569 |
1479 |
1468 |
14679 |
149 |
Note: If your monitor size is not included on the chart, use
the closest value.
| |
 |
